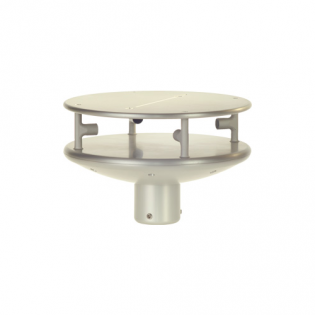

Ultrasonic Anemometer 2D Compact
| Model Number: | 4.3875.00.xxx |
|---|---|
| Manufacturer: | Adolf Thies GmbH & Co. KG |
The Ultrasonic Anemometer Compact measures wind velocity, wind direction as well as acoustic virtual temperature
Overview
The Ultrasonic Anemometer 2D Compact is used to detect the horizontal components of the wind velocity and wind direction. In addition, the acoustic virtual temperature is measured.
The instrument is especially suited for use in the following fields:
- Wind Energy
- Industrial Automation
- Building Automation
- Traffic Applications
- Meteorology
- Climatology
- Wind measuring systems for ships
The ultrasonic anemometer has no moving parts which greatly increases reliability whilst allowing accurate measurement even in very light winds.
Output of the measured values can be either digital and / or analogue.
Specifications
| Wind speed | |
|---|---|
| Measuring range | 0.01 – 75 m/s |
| Accuracy | ±2% measured value 5-60m/s |
| Resolution | 0.01 |
| Wind Direction | |
| Range | 0 - 360 degrees |
| Accuracy | ±2° |
| Resolution | 0.1° |
| Acoustic Temperature | |
| Range | -50ºC to +70ºC |
| Accuracy | ±2.0K |
| Resolution | 0.1K |
| General | |
| Data output serial | RS422 / RS485 |
| Data output analogue | 0-20mA, 0-10V or 4-20mA, 2-10V |
| Operating voltage - Sensor | 8-60VDC or 12-42 V AC 1.2W typical |
| Heating (Model Dependent) | 24 V AC/DC; 250W |
| Operating temperature | -50° to +80° C |
| Electrical connection | Multi-pin plug |
| Mounting | onto mast tube 1.5” Ø |
| Dimensions | Ø200 x 144 mm |
| Protection | IP67 |
| Weight | 2.0 Kg |
| Material of housing | Hard anodised aluminium |
Available Variants
The sensor is available in a number of variants covering heating and data output options. For full details please follow the link: Thies_Ultrasonic_Options
