Small Combined Wind Transmitter

The Small combined wind sensor is a mechanical cup and vane anemometer designed for the measurement of the horizontal wind direction speed and direction
Biral
Home / Products / Small Combined Wind Transmitter

Overview

The Small Series of wind transmitters are designed for applications where the best price performance ratio is required.

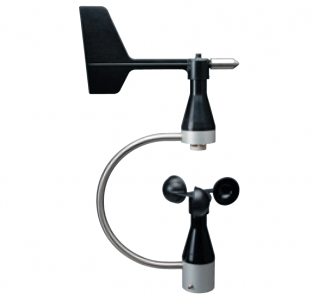

The Small combined wind sensor is a mechanical cup and vane anemometer designed for the measurement of the horizontal wind direction speed and direction. The all plastic sensor enclosures combined with high quality metal parts provides excellent corrosion resistance whilst labyrinth gaskets protect the electrical components.

An integrated temperature sensor makes this device an excellent choice for use as a simple weather station.

Specifications

Measurements
Wind Speed
Wind Direction
Temperature
Wind Speed
1-40 m/s
Wind Direction
10° – 350°
Temperature
NTC, 10KΩ

Output

Velocity
Switched contacts
Direction
Potentiometer
Temperature
Resistance
Ambient temperature
-30° to +60° C
Electrical connection
15m Cable
Mounting
30mm bore for post mounting
Dimensions
418 mm high
Protection
IP54
Weight
1 kg
Material
Plastic, Anodised aluminium and Stainless steel
