Laser Precipitation Monitor
| Model Number: | 5.4110.00.xxx |
|---|---|
| Manufacturer: | Adolf Thies GmbH & Co. KG |
Laser Precipitation Monitor for the accurate measurement of precipitation type and amount in real-time
Overview
The state-of-the-art Laser Precipitation Monitor (LPM) measures the amount, intensity and type of precipitation with great accuracy. The LPM is capable of measuring particles down to 0.16 mm diameter and can provide drop size distributions with 400 classes.
The data output is available in SYNOP, METAR, NWS, and in 4678 and 4680 WMO code. The system calculates intensity, volume (as water equivalent) and the spectrum of precipitation (diameter and velocity), the reduction to visibility in precipitation (MOR) and the radar reflectivity (Z).
The LPM uses reliable laser-optics to detect and discriminate different kinds of precipitation including:
- drizzle (DZ)
- freezing drizzle (FZDZ
- rain (RA)
- freezing rain (FZRA)
- hail (GR)
- snow (SN)
- snow grains (SG)
- ice needles (IC)
- soft hail (GS)
- ice grains (PL)
Features
- Measures precipitation amount, intensity, type
- Measures particles down to 0.16 mm diameter
- Maintenance-free
- Mains or battery power
- All year round use

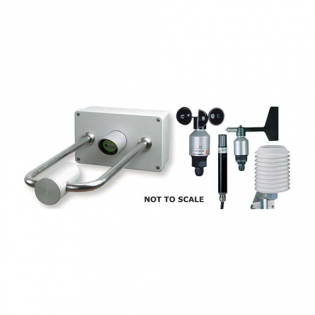

- Ability to add additional weather sensors
Common Specifications
| Particle size range | Ø0.16 to >8mm |
|---|---|
| Particle velocity range | 0.2 to 20m/s |
| Intensity | <0.005 to 250mm/hr |
| Accuracy | |
| Drizzle | >97% |
| Rain | >99% |
| Hail | >95% |
| Snow | >99% |
| Snow grains | >60% |
| General | |
| Data output serial | RS485 |
| Additional inputs | Temperature |
| Relative Humidity | |
| Wind Speed | |
| Wind Direction | |
| Operating voltage - Sensor | 24V AC or DC |
| 115 V AC | |
| 230 V AC | |
| 12 – 24 V DC | |
| Operating temperature | -40° to +70° C |
| Dimensions | 266 x 166 x 532mm |
| Protection | IP65 |
| Weight | 4.8 Kg |
Accessories
Instrument Support
4.3187.61.100 1m
4.3187.61.200 2m
4.3187.61.300 3m
LNM View Software
9.1700.99.000
