First Class Wind Speed Transmitter 4.3351.00.000

Heated Frequency Output
Home / Products / First Class Wind Speed Transmitter / First Class Wind Speed Transmitter 4.3351.00.000

Overview

Model Number Heating Output Power
4.3351.00.000 Yes Frequency1082 Hz at 50 ms-1 Sq wave 3.3 to 48 V DC0.3 mA @ 3.3V

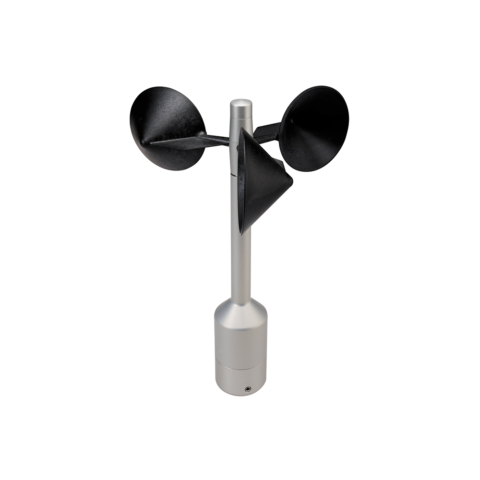

High sensitivity mechanical cup anemometer designed for the measurement of the horizontal component of the wind speed for site evaluation and the measurement of capacity characteristics of wind power systems as well as meteorological applications and environmental measurements.

Ideal for site assessment and power performance of Wind Turbine Generators

The Advanced First Class sensor is Class A, B and S accredited acc. IEC 61400-12-1 for site assessment and power performance of Wind Turbine Generators.

The sensor characteristics are optimised for dynamic behaviour, even in high turbulence intensities with minimal over-speeding and a low starting value. The sensor is available in a number of variants including digital and analogue outputs. Heated versions are available for use in regions prone to freezing.

Sales & Support

Contact Biral for more information

To find out more about this instrument or to discuss your application requirements please do not hesitate to contact Biral.

After Sales Support

Biral offers free advice and technical support for the lifetime of the instruments we sell. Once you have purchased the unit you can always contact us for help using the links on our Service Support page.
