Digital Barometer MSB780X
| Model Number: | MSB780X |
|---|---|
| Manufacturer: | MicroStep – MIS |
| Product Brochure: | Download |
A precision barometer designed specifically for use in aviation applications where highly accurate, and reliable measurement combined with long term stability is required.
Overview
A precision barometer designed specifically for use in aviation applications where highly accurate, and reliable measurement combined with long term stability is required.
Feature includes:
- 500 to 1100 hPa measurement range
- Long term stability of ±0.1 hPa/year
- Digital output
- Choice of 1 to 3 transducers
- Optional touch screen display

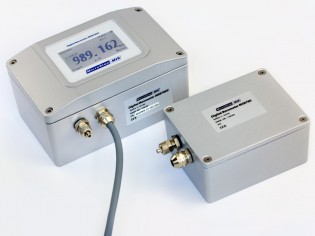

The MSB780X is designed for operation in challenging environments and is supplied in metal IP66 enclosure. The microprocessor based design is of low power allowing use in solar powered applications.
Specifications
| Measuring Range | 500 hPa to 1100 hPa |
|---|---|
| Linearity | < 0.02 hPa |
| Hysteresis | < 0.02 hPa |
| Accuracy @ 20°C | 0.10 hPa |
| Total Accuracy | 0.15 hPa (-50°C to +80°C) |
| Long Term Stability | Max ±0.1 hPa/year |
| Resolution | 0.001 hPa |
| Pressure Range | 500 hPa to 1100 hPa |
| Temperature | -50°C to +80°C |
| Relative Humidity | 0 to 100% |
| Overpressure | 4000 hPa – No impact on calibration |
| Burst Pressure limit | 7000 hPa |
| Enclosure | IP66 |
| Supply Voltage | 5 to 35 V DC |
| Current | Model Specific |
| Communications | RS232 |
| Number of Transducers | 1 to 3 |
