ALS-2 Ambient Light Sensor Calibrator

The ALS-2 Ambient Light Sensor Calibrator provides a quick and simple method of verifying the performance of the ALS-2 in the field
Home / Products / ALS-2 Ambient Light Sensor Calibrator

Overview

The ALS-2 Calibrator provides a quick and simple method of verifying the performance of the ALS-2 in the field.

The requirement to regularly check the performance of ambient light sensors (also referred to as background luminance meters) used in aviation systems can be costly and time consuming if the sensor must be removed and sent away for testing. The often used alternative of observing a change in output when the window is blocked cannot be considered to provide a reliable indication of performance in an aviation system.

The ALS-2 calibrator has been designed to reduce operational downtime to the absolute minimum whilst ensuring that the ALS-2 under test is both operational and correctly calibrated. It is simple to use by non-specialist staff and comes supplied in a rugged carry case with battery charger and instruction manual.

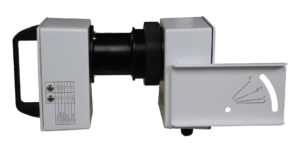

The battery powered calibrator slips over the hood of the ALS-2 and is held securely in place via a locking ring. The calibrator then communicates with the ALS-2 via an optical link, removing the need to disconnect cables or send commands to the sensor. The calibration of the ALS-2 is then checked at its zero point and against a known brightness. If any adjustments are required, this is performed automatically by the calibrator. The operator is kept informed throughout this process via status indicators on the calibrator. A complete calibration test and re-calibration (if required) is typically completed in less than 5 minutes.

The calibration check of ambient light sensors (or BLM’s) should be carried out periodically in line with the safety protocols or operating standards being met at the individual airport. As the ALS-2 calibrator check is so quick and easy to perform, more frequent checking is now possible to ensure optimum safety and operational performance levels are maintained more easily and cost effectively.

Features

  • No need to disconnect or remove ALS-2
  • 5 minutes typical calibration time
  • Battery powered for ease of use
  • Rugged carry case with accessories

Learn more about the ALS-2 range on YouTube

Technical Description

Designed to provide a reliable and accurate check, and if necessary, recalibration of ALS-2 Ambient Light Sensors, the ALS-2 Calibrator is quick and simple to use even by non-technical operators.

The battery powered calibrator slips over the hood of the ALS-2 and is secured in place using an elastic strap. The calibrator then communicates with the ALS-2 using an IR optical link removing the need to disconnect cables or send commands via the system software. The calibration of the ALS-2 zero point and gain is checked against a series of light levels and automatically adjusted as necessary. The operator is kept informed of progress through two status indicators on the calibrator body. A typical test and calibration sequence is completed in less than 5 minutes.

As there is no need to disconnect the ambient light sensor to perform the calibration check system reliability and down time are greatly reduced.

The ALS-2 Calibrator is supplied in a rugged carry case and its internal batteries can typically complete 30 calibration cycles on a single charge.

Specifications

Function
Zero point and gain check / calibration of ALS-2 Ambient Light Sensors
Calibration Accuracy
<5% of applied value
Calibration time
Typically 3 minutes, Maximum 8 minutes
Spectral excitation
Wavelength sensitivity range 420-675 nm, peak 565 nm. Analogous to CIE luminous spectral efficiency
Power
Battery powered,Mains charger included
Operating Temperature
-40°C to 70°C
Operating Humidity
0 – 100% RH
Protection rating
IP54
Weight (calibrator only)
1.4kg
