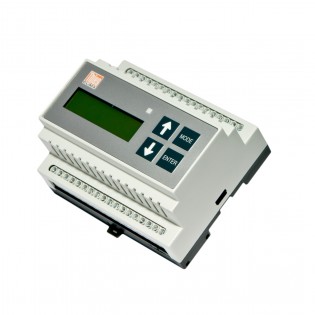

Wind Alarm Unit
| Model Number: | 4.3244.0x.000 |
|---|---|
| Manufacturer: | Adolf Thies GmbH & Co. KG |
Versatile Wind Alarm Unit for both speed and direction with relay outputs
Overview
A versatile Wind Alarm Unit that can be configured to provide alarm outputs for both wind speed and combined wind speed and direction. This DIN-Rail mounted device connects to a wide range of Thies wind speed and direction sensors and provides two user configurable relay outputs.
Features
- Two line LCD Display
- Display of current wind speed and direction
- Two independent wind alarm channels with selectable delay times
- Sensor monitoring for increased reliability
- Two isolated relay outputs
- Compatible with a wide range of Thies wind speed and direction transmitters
- User configurable
- Permanent storage of configuration
- Wind speed alarms
- Wind speed in particular direction alarm
Common Specifications
| Display | 2 lines of 16 characters |
|---|---|
| Wind Speed Input | Thies Frequency |
| 4-20mA | |
| Wind Direction Input | Thies Serial |
| 4-20mA | |
| Relays | 2 Changeover |
| 5A 250Vac | |
| Operating Voltage | 115VAC & 15-30 VDC or 230 V C & 15-30VDC |
| Mounting | Din Rail |
| See 4.3244.0x.000WindAlarm.pdf download for full details and wind transmitter compatibility. | |
