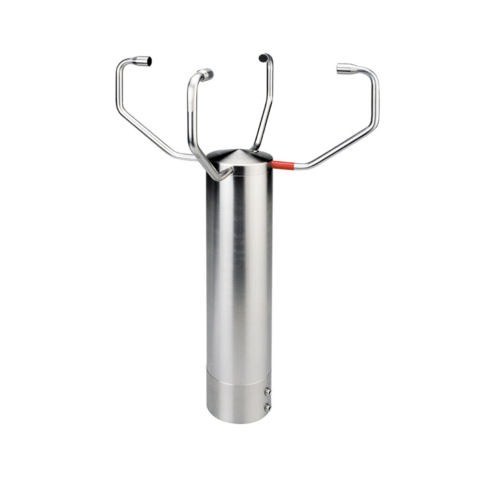

Ultrasonic Anemometer 2D

Model Number: 4.3820.xx.xx
Manufacturer: Adolf Thies GmbH & Co. KG

The 2D Ultrasonic Anemometer detects the horizontal component of the wind speed and wind direction. With no moving parts the anemometer is free from wear and needs no maintenance or calibration

Overview

Ultrasonic Anemometer 2D

Overview

The 2D Ultrasonic Anemometer detects the horizontal component of the wind speed and wind direction. With no moving parts the anemometer is free from wear and maintenance and needs no calibration. The sensor arms are automatically heated if necessary ensuring continued operation in snow and during icing events. The electronics of the ultrasonic anemometer is based on the latest DSP (digital signal processor) technology.

Measuring principle

Ultrasonic anemometers measure wind speed by detecting the difference in time taken for an ultrasonic pulse to travel in each direction between pairs of transducers caused by movement of the air. This method allows accurate measurement even at low wind speeds as there is no mechanical inertia to overcome. The lack of mechanical inertia also allows measurements to be taken at high frequency allowing precise time dependent measurement. Sonic temperature is also available in the output data.

A number of sensor variants are available to cover a wide range of applications.

Specifications

Wind Speed
Measuring range 0.01 – 75 m/s
Accuracy ±2% of measured value for >5ms
Resolution 0.01m/s
Wind Direction
Measuring range 0-360°
Resolution
Accuracy ±1º
Acoustic Temperature
Range -50oC to + 70oC
Accuracy ±0.5K to 35m/s
Resolution 0.1K
General
Data output serial RS422 / RS485
Data output analogue 0-20mA, 0-10V or 4-20mA, 2-10V
Analogue inputs Up to three possible
Operating voltage - Sensor 8-78VDC or 12-55 V AC 1.5W typical
Heating (Model Dependent) 24 V AC/DC; 80W
48 V AC/DC: 280W
Operating temperature -50° to +80° C
Electrical connection Multi-pin plug
Mounting onto mast tube 1.5” Ø
Dimensions Ø287mm x 424mm
Protection IP67
Weight 2.5 Kg
Material of housing Stainless steel

Available Variants

The sensor is available in a number of variants covering heating and data output options. For full details please follow the link: Thies_Ultrasonic_Options
