Small Wind Speed Transmitter

Model Number: 4.3xxx.xx.xxx
Manufacturer: Adolf Thies GmbH & Co. KG

The Small Series of wind transmitters are designed for applications where the best price performance ratio is required

Overview

Small Wind Speed Transmitter

The Small Series of wind transmitters are designed for applications where the best price performance ratio is required.

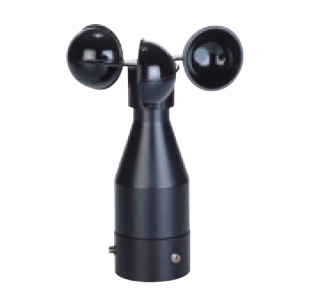

The Small Wind Speed sensor is a mechanical cup anemometer designed for the measurement of the horizontal wind speed with either dc generator or reed switch outputs. The all plastic enclosure provides excellent corrosion resistance whilst labyrinth gaskets protect the electrical components.

Common Specifications

Measuring range 0.5-40 m/s (model dependent)
Accuracy ±0.5 m/s or ±5% of measured value
Ambient temperature -25° to +60° C
Mounting 35mm bore for post mounting
Protection IP54
Weight 0.3kg
Material of housing Plastic
Material of cup Plastic
