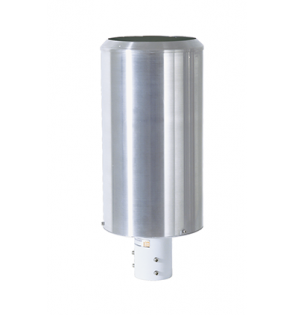

Precipitation Transmitter

Model Number: 5.4033.3x.xxx
Manufacturer: Adolf Thies GmbH & Co. KG

A range of tipping bucket and dropper rain gauges

Overview

Precipitation Transmitter

This range of precipitation transmitters incorporates both tipping bucket and dropper models to provide a wide range of resolution and intensity options.

All models feature a 200cms2 collection area and robust stainless steel housings. A range of outputs are available including pulse, current and wireless.

Heating is available for all models allowing operation in snow and freezing conditions.

Common Specifications

Collection area 200 cms2
Maximum intensity 11 mm/min
Operating temperature -25° to +60° C
Dimensions Ø225 x 445mm (typical)
Material Stainless steel casing
Mounting Onto a Ø50mm mast

Accessories

5.4031.11.010                Bird spikes

5.4032.00.000             Wind protection
