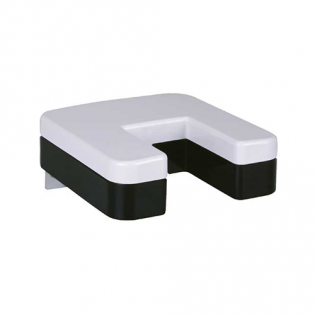

Precipitation Monitor

Model Number: 5.4103.10.X00
Manufacturer: Adolf Thies GmbH & Co. KG

This instrument, typically used in building control applications, detects the presence of rain and other precipitation types

Overview

Precipitation Monitor

This instrument detects the beginning and end of precipitation. It can be used report the presence of precipitation or to control rain protection devices such as awnings or windows.

The precipitation is detected optically within a 25cms2 area. There are user configurable settings for the start of precipitation and the off delay. A single changeover relay provides the output.

Integrated heating avoids problems with snow or freezing.

Common Specifications

Particle size range Ø > 0.2mm
Switch on condition 1 to 15 incidences
Switch off delay 25 to 375s in 25s increments
Output Single pole changeover relay
Switching load is model dependent
Operating voltage 24 V AC or DC 70mA
1A heating
Operating temperature -30° to +60° C
Dimensions 130 x 140 x 40 mm
Protection IP 65
Weight 0.4 kg
